Tire Inflator Accuracy Test: Gauge Errors, Auto-Stop Performance & Quality Control

A portable tire inflator can have a powerful motor, a bright digital display, and an automatic shutoff feature yet still disappoint customers if the pressure reading is wrong. For automotive accessory distributors, importers, private-label brands, and manufacturers, the difficult question is not whether a compressor can inflate a tire. It is whether the displayed pressure, programmed target, and final stabilized tire pressure agree within a clearly defined acceptance limit.

These are separate engineering characteristics. Gauge accuracy describes the difference between an instrument’s indicated pressure and a suitable reference measurement. Repeatability describes how closely measurements agree under the same conditions. Auto-stop performance describes how closely the final tire pressure approaches the selected target after the compressor switches off. A product may pass one test and fail another.

In 2026, buyers evaluating portable inflators should require documented, multi-point verification rather than accepting vague claims such as “high precision” or “intelligent auto-stop.” The method should control reference-instrument uncertainty, temperature, electrical supply, hose and chuck configuration, initial tire pressure, and measurement timing. These controls turn a supplier’s marketing claim into a reproducible acceptance test.

This guide explains how to build that test program, interpret its results, investigate failures, and carry the approved requirements from sample evaluation into mass production. It also explains where EV charging protocols and industrial telemetry can support quality management—and where those technologies have no direct bearing on tire-pressure accuracy.

1. Why Tire Inflator Gauge Accuracy Matters to Drivers and B2B Buyers

Display accuracy, target accuracy, and final pressure are different

A digital inflator typically measures pressure with an electronic transducer connected to a sensing circuit and microcontroller. The controller converts the sensor signal into a pressure value, applies calibration coefficients and filtering, and presents a result on the display. In automatic mode, the firmware also compares a measured value with the selected target and decides when to switch off the motor.

Every stage can introduce error. The sensor may have an offset, the analog-to-digital conversion may have limited resolution, the calibration coefficients may be unsuitable for the production sensor batch, and the display may round the result. The shutoff algorithm introduces another set of variables, including filtering delay, motor-switching latency, and pressure changes after airflow stops.

For example, suppose a driver selects 35 PSI. The display might indicate 35 PSI while a calibrated reference reads 33.8 PSI. Alternatively, the display may agree with the reference during a static check, but the compressor may stop pumping too late and leave the tire at 36.2 PSI. The first case indicates a measurement discrepancy; the second indicates an auto-stop performance problem. Both can occur in the same product.

• Indication error: The inflator’s displayed pressure minus the reference pressure.
• Repeatability: The spread among repeated readings or trials at the same operating point.
• Auto-stop error: The final stabilized tire pressure minus the programmed target.
• Hysteresis: A difference in indicated pressure depending on whether pressure is approached from above or below.
• Thermal drift: A change in measurement or control behavior as the sensor, electronics, hose, or compressor warms up.

How measurement defects become commercial losses

Drivers commonly compare a portable inflator with a separate gauge, the vehicle’s tire-pressure monitoring system (TPMS), or a service-station inflation unit. Those instruments may also have uncertainty, but a persistent discrepancy is enough to trigger a complaint. A buyer who cannot reproduce the advertised result has little reason to trust the product, even when the compressor itself remains mechanically functional.

For wholesalers and private-label suppliers, the consequences extend beyond an individual refund. Repeated complaints increase support workload, replacement shipments, marketplace returns, and inspection costs. If the same defect appears across a production batch, a buyer may need to quarantine inventory or suspend replenishment while the supplier investigates.

The correct response is to identify the error mechanism rather than automatically replacing the compressor. A product may need sensor recalibration, firmware adjustment, a better chuck seal, or improved thermal management. Each remedy addresses a different failure mode.

2. Establishing a Traceable Pressure Measurement System

Selecting the reference instrument

The reference gauge is the foundation of the entire verification process. Comparing an inflator with an inexpensive gauge of unknown accuracy does not establish which instrument is correct. If both instruments have errors in the same direction, the comparison can produce false confidence. If their errors oppose each other, a satisfactory product may appear defective.

Use a calibrated pressure reference with a documented calibration history, a suitable measurement range, and uncertainty appropriate to the acceptance tolerance. The reference may be a calibrated digital pressure gauge, a pressure controller with a suitable reference transducer, or a laboratory pressure standard. Its connection arrangement must be compatible with the test fixture and must not introduce excessive leakage or dead volume.

The National Institute of Standards and Technology explains the principles of measurement traceability and the need for an unbroken, documented calibration chain. Its guidance also makes an important distinction: traceability alone does not guarantee that a measurement is fit for a particular purpose. The reference must have sufficiently low uncertainty for the decision being made.

See the NIST policy on metrological traceability for guidance on calibration chains and measurement results.

Reference uncertainty and acceptance decisions

A useful test specification considers the uncertainty of the complete measurement arrangement, not just the accuracy printed on the reference gauge. Relevant contributors include reference calibration uncertainty, resolution, repeatability, pressure stability, connector leakage, temperature variation, and the influence of the test fixture.

Suppose the allowed indication error is ±1.0 PSI, but the reference system has an uncertainty of ±0.8 PSI under the actual test conditions. A reading close to the acceptance boundary cannot be classified confidently without considering that uncertainty. A better reference system would make the decision more defensible.

As an engineering target, a reference uncertainty substantially smaller than the product tolerance is preferable. A 4:1 test-uncertainty ratio is a useful starting point for many inspection programs, not a universal mandatory rule. The appropriate ratio depends on the risk, the applicable standard or contract, and the decision rule agreed by buyer and supplier.

• Record the reference instrument’s identification number and calibration date.
• Confirm that the calibration covers the pressure range being tested.
• Record the reference’s stated uncertainty and resolution.
• Check the fixture for leaks before collecting acceptance data.
• Document any measurement correction applied to the reference reading.
• Define whether results near a limit require a guard band, a retest, or escalation.

Build a controlled test fixture

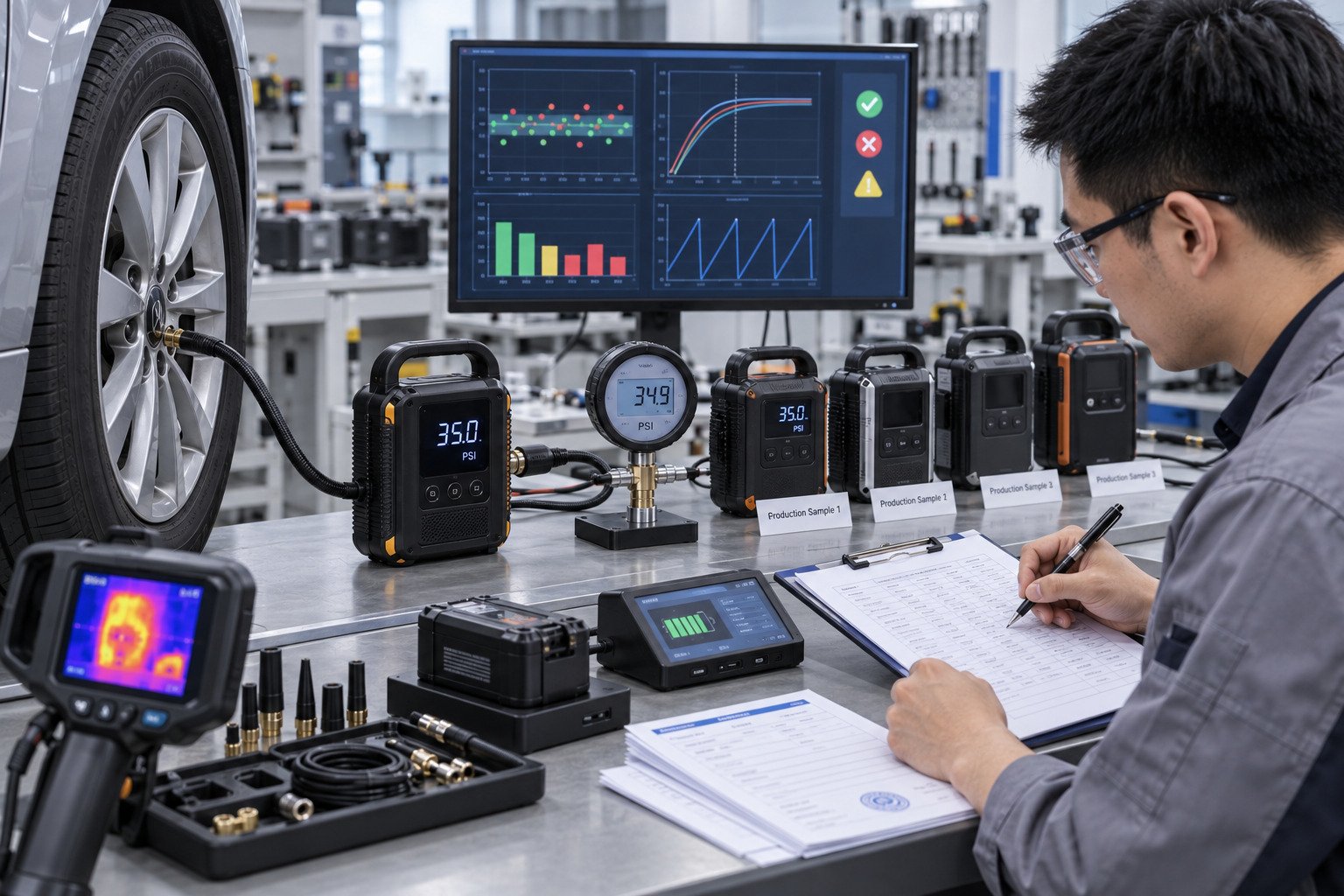

For repeatable results, use a pressure-rated fixture that permits the inflator and reference transducer to measure the same pressure volume. A suitable arrangement may include a stable test vessel, calibrated reference transducer, isolation valves, a compatible tire chuck, and a data acquisition system. The fixture should avoid unnecessary restrictions and excessive dead volume.

A rigid test vessel is useful for static sensor verification because it makes the pressure easier to control and repeat. However, it does not fully reproduce the behavior of a real tire during inflation. Production qualification should therefore include both static comparison and realistic auto-stop trials using a representative tire or an appropriately characterized tire-volume fixture.

Do not assume that a simple tee connection always makes two gauges equivalent. The placement of restrictions, pressure pulsations, small leaks, and the dynamic response of each transducer can cause readings to differ while the compressor is running. Static comparison after the pressure settles is usually more suitable for assessing indication error.

3. A Repeatable Protocol for Gauge Accuracy, Repeatability, and Auto-Stop Testing

Step 1: Define the operating envelope

Before testing, specify the intended pressure range, normal customer set points, supply voltage or battery state, ambient temperature, test medium, and connector type. A passenger-car inflator intended mainly for approximately 30–35 PSI needs careful evaluation in that region, while a product marketed for bicycle tires or other high-pressure applications requires testing across its own declared operating range.

Choose at least a low, middle, and high pressure point within the manufacturer’s stated operating range. Add points around the most frequently used target values and near any range transition where the display or firmware changes behavior. Never exceed the product’s rated pressure simply to explore its performance.

• Record the model, hardware revision, firmware version, and serial number.
• Record ambient temperature and, where practical, the temperature of the sensor housing.
• Use the same pressure units and document any conversion between PSI, bar, and kPa.
• For cordless models, define battery state of charge and the method used to measure it.
• For vehicle-powered models, use a controlled supply within the manufacturer’s rated input range.

Step 2: Measure static indication error

Set a stable pressure using the reference system, allow the reading to settle, and record both the reference value and the inflator’s indicated value. Repeat at each selected pressure point. Where the design permits, compare readings while pressure is approached from below and from above to identify possible hysteresis.

Calculate indication error using the following equation:

Indication error = inflator indication − reference pressure

For example, if the inflator indicates 34.6 PSI while the reference indicates 35.0 PSI, the indication error is −0.4 PSI. If the display indicates 35.7 PSI, the error is +0.7 PSI. The sign matters because a consistent positive error can lead to a different practical outcome from a consistent negative error.

Where possible, record the raw readings rather than only pass/fail results. Raw data makes it easier to identify a sensor offset, nonlinear response, a sudden range transition, or a unit that performs well near one target but poorly elsewhere.

Step 3: Quantify repeatability

Repeatability should be assessed at fixed pressure points with the same instrument, operator or automated procedure, fixture, connection method, and environmental conditions. Five or more repeated observations per point can provide an initial screening dataset, while more observations may be appropriate for borderline results or a formal capability study.

Record the mean, minimum, maximum, and range of the readings. If the dataset is sufficiently large and the distribution is appropriate, calculate the standard deviation as well. Do not confuse a small spread with accuracy: a gauge can consistently read 1.5 PSI too high and still exhibit excellent repeatability.

For automatic inflation trials, reset the initial pressure to the same defined value before each run. Repeatedly inflating a tire without returning it to a controlled starting condition can make the results incomparable. Confirm that the valve, chuck, hose, and electrical supply remain consistent.

Step 4: Measure auto-stop error after shutdown

Begin each trial at a pressure below the selected target. Connect the inflator securely, program the target, and start the compressor. Record the pressure at or immediately before shutdown if the equipment supports reliable logging. After the motor stops, continue recording pressure until the system reaches a defined stable condition. Then compare the final stabilized reference pressure with the selected target.

Calculate auto-stop error as follows:

Auto-stop error = final stabilized reference pressure − programmed target

If the target is 35.0 PSI and the final reference pressure is 35.6 PSI, the auto-stop error is +0.6 PSI. If the final reading is 34.4 PSI, the error is −0.6 PSI. The result should be compared with the buyer’s written acceptance limit, not with an assumed universal industry tolerance.

Define stabilization before testing. For example, the protocol may require the reference reading to remain within a specified band for a specified period after motor shutdown. The exact band and duration should be chosen for the fixture’s response, the instrument’s resolution, and the intended application. A fixed waiting time alone is less defensible if pressure is still changing at the end of that interval.

Step 5: Run warm-condition and power-state tests

A cold-start result cannot establish performance after sustained use. Run a defined sequence of inflation cycles, recording operating time, shutdown behavior, and sensor or housing temperature where practical. Repeat the static indication and auto-stop checks once the product reaches the specified warm condition. Allow the unit to cool between trials when the protocol requires a cold baseline.

For cordless products, compare defined battery states because motor speed and supply voltage can influence inflation rate and control timing. For vehicle-powered products, control input voltage and monitor voltage drop at the device terminals where possible. A long, undersized cable can produce a different operating condition from a short laboratory lead.

These methods form a practical engineering protocol, not a claim that one universal tire-inflator standard prescribes these exact points or repetition counts. The buyer should adapt the procedure to the product’s intended use, the supplier’s claims, and the contractual acceptance criteria.
